PSP Stainless and alloy Butt-Weld Fittings

Seamless Butt-Weld

1/2" through 12"

Schedules S/10S, S/40S, S/80S, S/160

304/L, 316/L, 310, 304/H, 347/H,321/H, 317/L, Duplex 2205, Alloy 20

Aluminum (6061-T)

Welded Butt-Weld

1/2" through 36"

Schedules S/10S, S/40S, S/80S

304/L, 316/L, 310, 304/H, 347/H, 321/H, 317/L, Duplex 2205, Alloy 20

Pressure Fittings

304/L, 316/L, Alloy 20

1/8" through 4"

150# (MSS-SP114), 3000#, 6000#

SW and Threaded

PSP Pipe

PSP Seamless

304/L, 316/L, 310, 304/H, 347/H, 321/H, 317/L, Duplex 2205, Alloy20

Schedules S/10S, through XXH (including all True Walls 10, 40, 80)

12" through 24"

PSP Welded

1/8" through 36" in Schedules S/10S, S/40S, (304/L and 316/L)

8" through 12: in Schedule S/20S

14" through 20 True 10

1/2" through 24" in S/80S, (8" -24" 100% X-rayed)

304/L, 316/L, 310, 304/H, 347/H, 321/H, 317/L, Duplex 2205, Alloy 20

PSP Welded Carbon Pipe

A53 Grade A, AP15L Grade B, AP15L Grade B /X42, /X52, /X65, PSL-1, PSL-2

Sizes 1/2" Schedule 10, STD and XH

Single Random and Double Random Lengths

PSP Seamless Carbon Pipe

ASTM A53 Grade B, ASTMA 106 Grade B/C, AP15L Grade B, AP15L Grade B/X42

/X52 / X60 /X65, ASTM A333 Grade 1/6, ASME.NACE MRP 175

Sizes 1/8" - 26" Single Random and Double Random Lengths

Schedules Sch. 20 - through XXH, with XXXH in 2-1/2" and 3"

 Carbon Steel Low-Temp Butt weld fittings

1/2" through 60" Std, XH special walls 26" and larger

1/2" through 24" all schedules, S10 through XXH

All types include 3Rs, crosses and reducing 90s
High Yield

Y42, Y52, Y65/70

1/2" through 24" 90s, 45s, tees, reds, concentric, ECC, 3R90, 3R45

including segmentable Walls std through schedule 90

Chrome P5, P9, P11

Butt weld fittings

1/2" through 24" - std through S/160, LR90s, SR90, tees, red tees, concentric, ECC


 A105

 1/2" through 48" - 150#, 300#

1/2" through 36" - 600#

1/2" through 24" - 900#, 1500#

1/2" through 8"   - 2500#

Weld-neck, long weld-neck, blind, slip-on, threaded, lap joint, reducing, in schedules 10 through XXH

High Yield

F-52 and F65/70 - 150#, 300#, 600#, 900#, 1500#

2" through 24" - 150#, 300#, 600#, std through schedule 80

2" through 12"  - 900#, 1500#, std through schedule 80

A350 LF2

 1/2" through 36" - 150#, 300#, 600#, all schedules

1/2" through 12"  - 900#, 1500#, 2500#, all schedules

A182 F5, F9, F11

2" through 24" - 150#, 300#, 600#, all schedules

2" through 12"  - 900#, 1500#, all schedules

PSP 304L & 316L

Products 150# Cast Fittings

1/8" through 4" 90s, tees, 45s, & unions 1/8" through 6" threaded couplings & half couplings MSS-SP114

Pipe Nipples

1/4 through 4" diameter, up to 12" length 40S welded and 80S seamless

O-Lets & Swages

1/2" through 2" 3000#

Custom finishes available

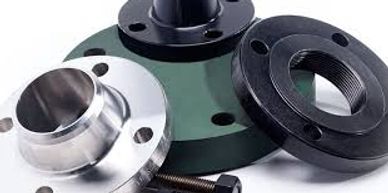

Flanges

1/2" through 36"

Weld necks, slip-on, blinds, hi-hib blinds, socket weld, threaded, lap joints Stocking raised face and ring type joint/li> 150#, 300#, 600#, 900#, 1500#, 2500#/li> 304/L, 316/L, 310, 304/H, 347/H, 321/H, 317/L, Duplex 2205, Alloy 20

Aluminum (6061-T6) in 150#, 300# only Square cut flanges in stock machined to all schedules and faces
